Embedding object example

Below is an example of adding or embedding one class into another class.

<?xml version='1.0' encoding='utf-8'?>
<!DOCTYPE hibernate-configuration PUBLIC
        "-//Hibernate/Hibernate Configuration DTD 3.0//EN"
        "http://www.hibernate.org/dtd/hibernate-configuration-3.0.dtd">

<hibernate-configuration>

    <session-factory>

        <!-- Database connection settings -->
        <property name="connection.driver_class">oracle.jdbc.driver.OracleDriver</property>
        <property name="connection.url">jdbc:oracle:thin:@localhost:1521:xe</property>
        <property name="connection.username">hr</property>
        <property name="connection.password">hr</property>

        <!-- JDBC connection pool (use the built-in) -->
        <property name="connection.pool_size">1</property>

        <!-- SQL dialect -->
        <property name="dialect">org.hibernate.dialect.OracleDialect</property>

        <!-- Disable the second-level cache  -->
        <property name="cache.provider_class">org.hibernate.cache.NoCacheProvider</property>

        <!-- Echo all executed SQL to stdout -->
        <property name="show_sql">true</property>

        <!-- Drop and re-create the database schema on startup -->
        <property name="hbm2ddl.auto">create</property>

        <!-- Names the annotated entity class -->
        <mapping class="com.ram.dao.Address"/>
        <mapping class="com.ram.dao.UserDetails"/>

    </session-factory>

</hibernate-configuration>

In order to add this class into another class we need to mark the class as @Embeddable.

package com.ram.dao;

import javax.persistence.Embeddable;

@Embeddable
public class Address {
 private String street;
 private String city;
 private String state;

 public String getStreet() {
  return street;
 }
 public void setStreet(String street) {
  this.street = street;
 }
 public String getCity() {
  return city;
 }
 public void setCity(String city) {
  this.city = city;
 }
 public String getState() {
  return state;
 }
 public void setState(String state) {
  this.state = state;
 }
}

In this class we are using Address class so we need to mark the Address variable as @Embedded.

package com.ram.dao;

import javax.persistence.Embedded;
import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;

@Entity
public class UserDetails {
 @Id
 @GeneratedValue(strategy=GenerationType.AUTO)
 private int userId;
 private String userName;
 @Embedded
 private Address address;

 public Address getAddress() {
  return address;
 }
 public void setAddress(Address address) {
  this.address = address;
 }
 public int getUserId() {
  return userId;
 }
 public void setUserId(int userId) {
  this.userId = userId;
 }
 public String getUserName() {
  return userName;
 }
 public void setUserName(String userName) {
  this.userName = userName;
 }
}

package com.ram.hibernate;

import org.hibernate.Session;
import org.hibernate.SessionFactory;
import org.hibernate.cfg.Configuration;

import com.ram.dao.Address;
import com.ram.dao.UserDetails;

public class EmbeddedObjectExample {
 public static void main(String[] args) {
  UserDetails userDetails = new UserDetails();
  userDetails.setUserName("Ram");

  Address address = new Address();
  address.setStreet("Richmond");
  address.setCity("Melbourne");
  address.setState("Victoria");

  userDetails.setAddress(address);

  SessionFactory sessionFactory = new Configuration().configure().buildSessionFactory();
  Session session = sessionFactory.openSession();
  session.beginTransaction();
  session.save(userDetails);
  session.getTransaction().commit();
  session.close();
 }
}

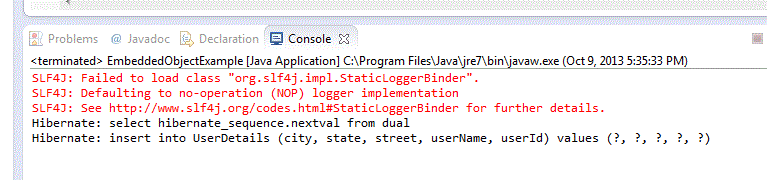

Execute EmbeddedObjectExample.java and you should get the below output.
